Technical Parameters:

Battery Voltage 12V/24V

Max. Charging Current 5A

Rated Input Voltage AC(150~277)V

AC Input Frequency (50/60)Hz

Max. Input Current 1.2A/2.0A

Max. Input Current AC(150~305)V

Operating Mode Two-stage or three-stage

Operating Temp. (-40~+55)°C

Storage Temp. (-40~+85)°C

Net Weight(kg) 0.47

Case Dimensions(mm) 136*86*49

Product Overview:

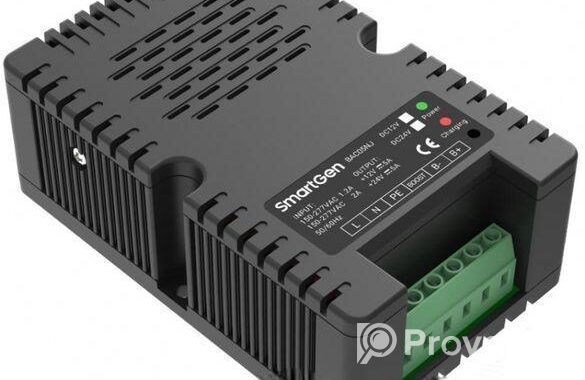

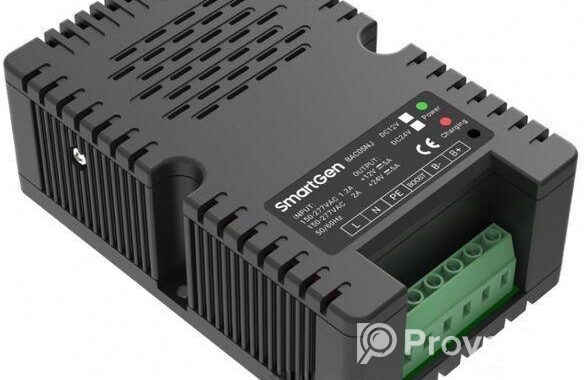

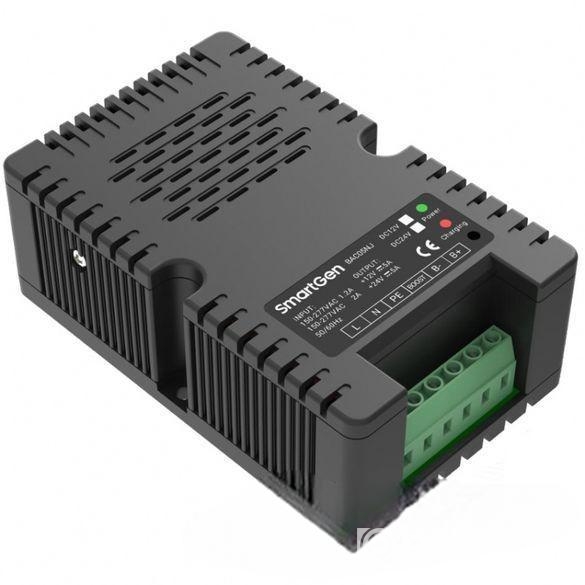

BAC05NJ battery charger adopts switching power supply device, and is specially designed for lead-acid battery used in engine start according to its property. The charger is suitable for long-term complement charging (floating) of lead-acid battery. It is suitable for 24V/12V battery and the maximum output current is 5A.

Characteristics are as below:

1. Applying switching power supply structure, wide range of AC voltage input, small volume, light weight and high efficiency;

2. Two-stage or three-stage charging method based on needs, both of them are designed according to charging properties of the lead-acid battery, which can avoid overcharging and this extends the battery life to the fullest;

3. It has short circuit protection, reverse connection protection, absorption timing, and BOOST functions;

4. LED status display: power indicator, and charging indicator;

5. Applying horizontal installation, which is easy and simple to install.
