* 2 Placement Heads + 29 feeders

* High accuracy mounting with 2 Vision cameras

* Motors with encoder, closed-loop control

* External PC operation with win7/10 system

* Industry high reliable mainboard

* High quality Juki Nozzles

* Multi PCB assembly support

* Cut tape/ bulk IC/ IC tray support

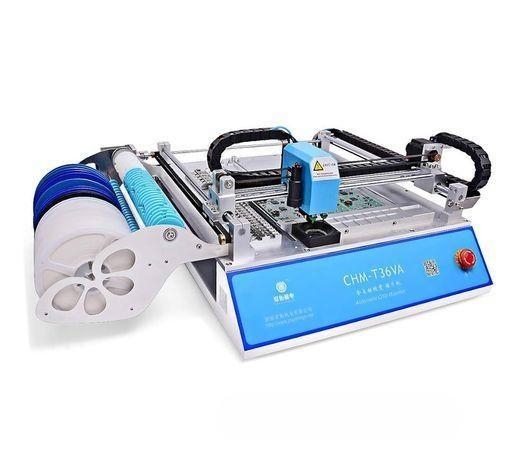

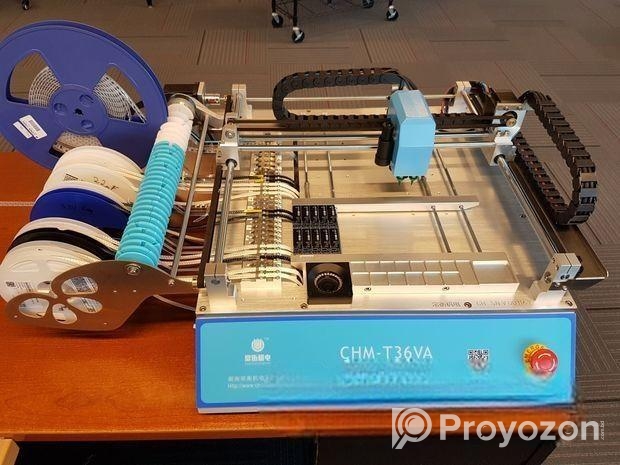

Model CHM-T36VA

XYZ Axis travel 400mm(X)×460mm(Y)×15mm(Z)

PCB max size 10*10mm ~ 345mm(L)×360mm(W)

Support components

Mounting speed Without vision:4000cph; With Vision:2500cph

Precision ±0.025mm

Placement head 2 heads

PCB thickness 0.6-3.5mm

Transmission system Synchronous belt+polished rod

Feeding system 29pcs feeders(8mm 22pcs; 12mm 4pcs; 16mm 2pcs; 24mm pcs); 14 front bulk IC; 20 custom IC tray

Demension 960mm(L)×705mm(W)×335mm(H)

Vision detection Double camera (up & down)

Motor control XY Axis stepper motor with encoder closed-loop control

Components leakage detection Z Axis reset detection; Vision inspection

Main board High-reliability industry motherboard

Touch Screen No touch screen, operation with external PC(windows7,10)

Operation system External PC control with Charmhigh software

Air source Built-in 2 vacuum pumps, no external air supply required

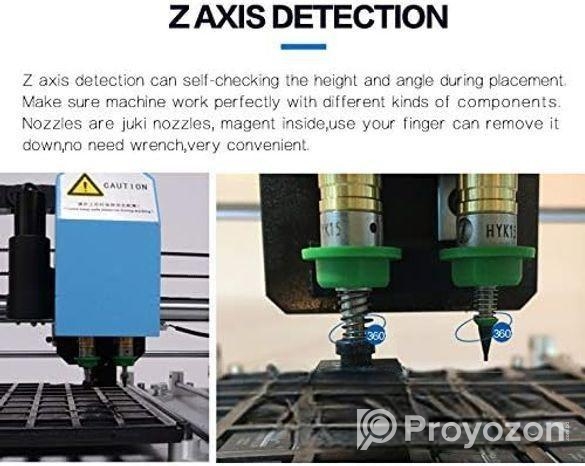

Pull pin needle auto return Yes, to avoid pull pin broke

Support software Altium designer,Protell99SE,PADS,Kicad,Eagle,Cadint,Cadence Orcad,Cadence Allegro,PROTEUS
